Bernardo  |  SKU: 01-13230

Radial drill RD 700 Vario

€5.673,00
pay up to 30 installments,

Delivery and Shipping

At Krolit, we are committed to providing a seamless and reliable shipping experience for our customers. Once you place your order, it is generally processed within 1-3 business days, excluding weekends and holidays. As soon as your order ships, you will receive a confirmation email with your tracking number and shipment details, so you can easily track your delivery.

We offer several shipping options, including standard, express, and overnight shipping, to meet your needs. Shipping costs and estimated delivery times are clearly displayed at checkout and vary based on your location and the shipping method selected. Please note that all delivery times are approximate and may be subject to delays due to factors such as weather conditions, high order volume, or courier issues.

Currently, Krolit [offers/does not offer] international shipping. If international shipping is available, please be aware that customs duties, taxes, or other additional fees may apply, which are the responsibility of the recipient. We recommend checking with your local customs office before placing an order.

To ensure timely delivery, please ensure the shipping address provided at checkout is correct and complete. Krolit is not responsible for delays or lost packages due to incorrect or incomplete address information. If your package appears to have been delivered but you haven't received it, we recommend contacting the courier first. If the problem persists, our customer support team is available to assist you.

If you have any questions or concerns regarding shipping or delivery, please do not hesitate to contact us at [your email address] or by phone at [your phone number].

At Krolit, we value your satisfaction and are committed to ensuring your order arrives safely and on time.

Secure payment guaranteed

Description

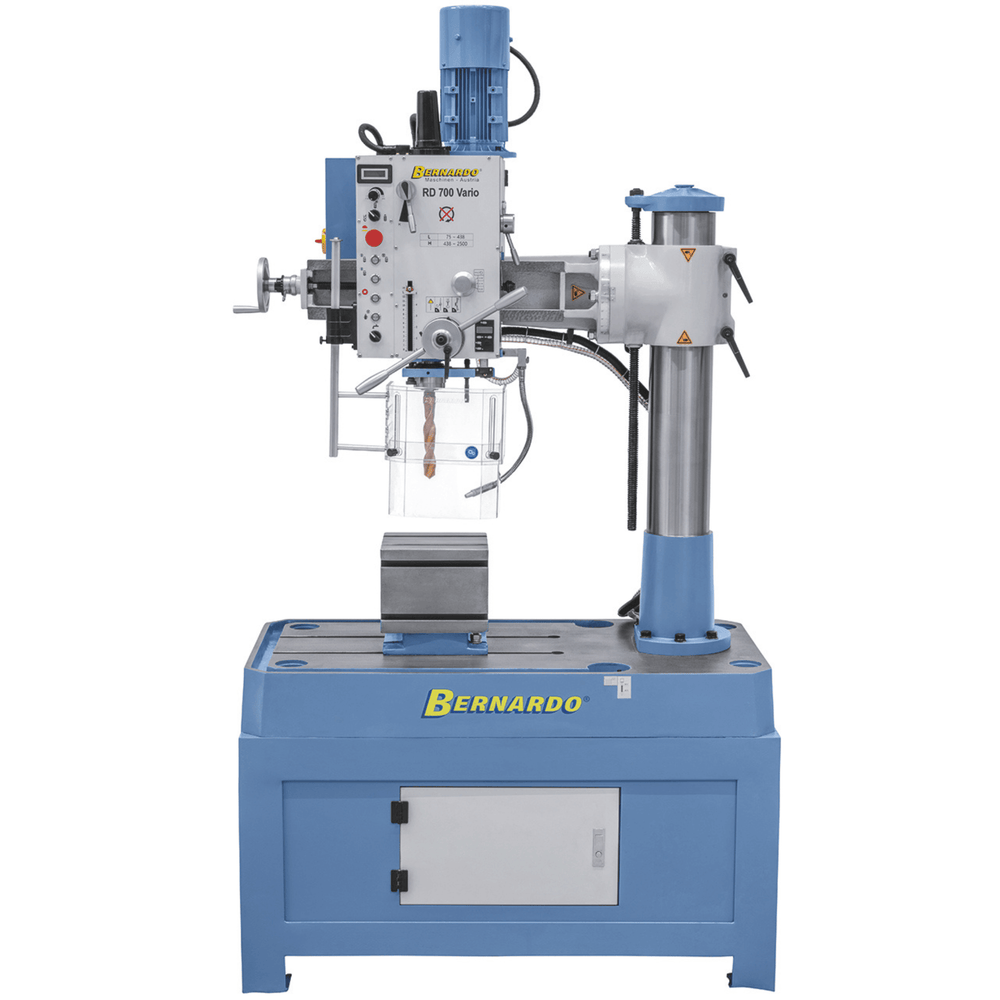

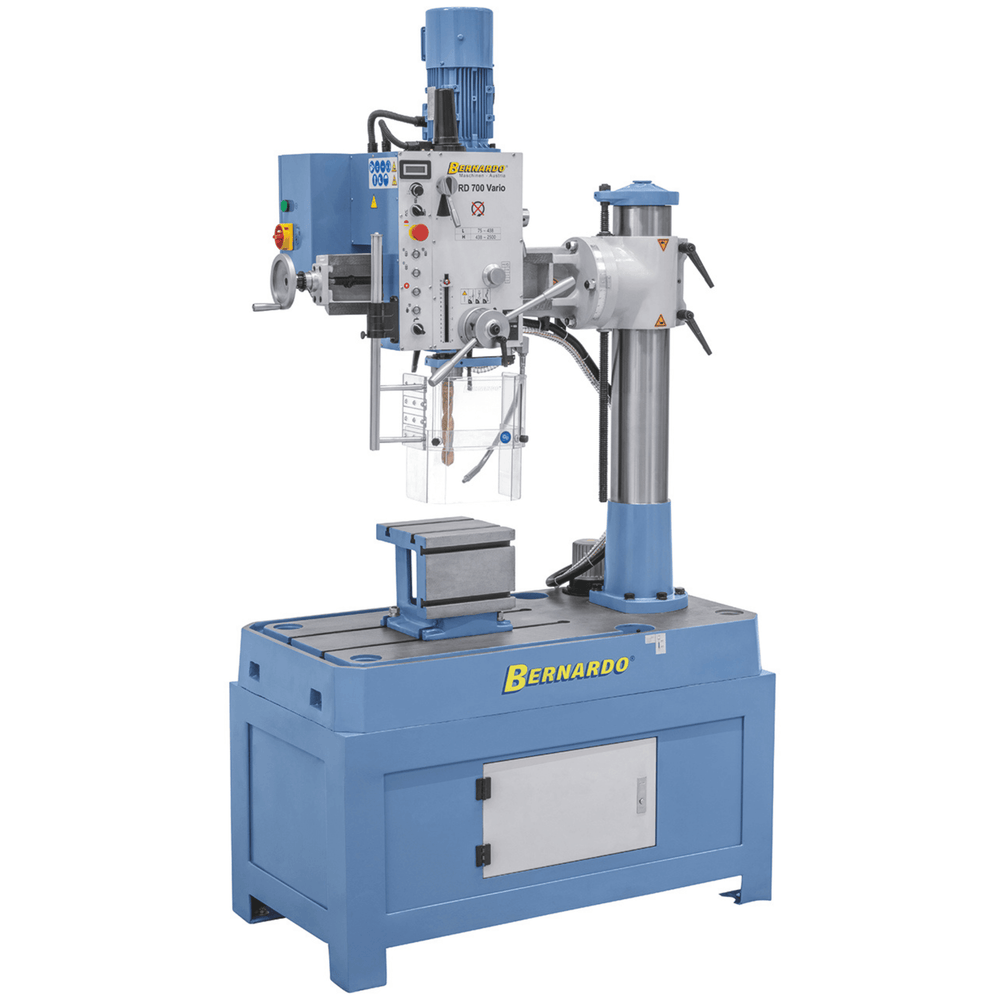

RD 700 Vario radial drill with variable speed and swivel arm

The RD 700 Vario is a robust radial drilling machine designed for professional drilling of large components. Thanks to its continuously variable speed control, ±45° swivel arm, and automatic spindle feed, it guarantees high performance in drilling, countersinking, reaming, and tapping operations. Ideal for machine shops and companies requiring maximum flexibility and precision.

Main features

• Continuous speed regulation with digital readout
• Automatic feed of the pinola and integrated tapping function
• Adjustable arm ±45° with 400 mm horizontal translation
• Ground base plate with T-slots for fixing bulky workpieces
• High smoothness thanks to the ground surface of the external column
• Centralized control via intuitive front panel
• Mechanical locking of the head, column and arm group
• Suitable for drilling, countersinking, reaming and tapping
• Variable useful height with vertical arm adjustable up to 505 mm

Technical table

Characteristic Value
Max. drilling capacity 32 mm
Max. tapping capacity M22
Arm excursion (min. – max.) 300 – 700 mm
Vertical arm lift 505 mm
Horizontal head stroke 400 mm
Pinola race 130 mm
Speed range (2 stages) 75–438 / 438–2500 rpm
Spindle attachment MK 3
Pinola advances 0.08 / 0.14 / 0.22 mm/U
Distance between spindle and cube table 0 – 430 mm
Distance spindle – base plate 175 – 680 mm
Cube table (L x W x H) 250 x 250 x 250 mm
Basic work plan 900 x 620 mm
Column diameter 150 mm
Engine power 1.5 kW
Machine dimensions (L x W x H) 1220 x 640 x 1750 (2350*) mm
Weight (with base) approx. 722 kg

Package Contents

• Cube table 250 x 250 x 250 mm
• Keyless chuck 3–16 mm / B18
• MK 3 / B18 adapter cone
• MK 3 / 2 reducer
• Refrigeration system
• Automatic tapping function
• Digital speed indicator
• Digital drilling depth indicator
• Height-adjustable protection
• Service keys
