Reventon  |  SKU: WHHC15D360-3S-2422

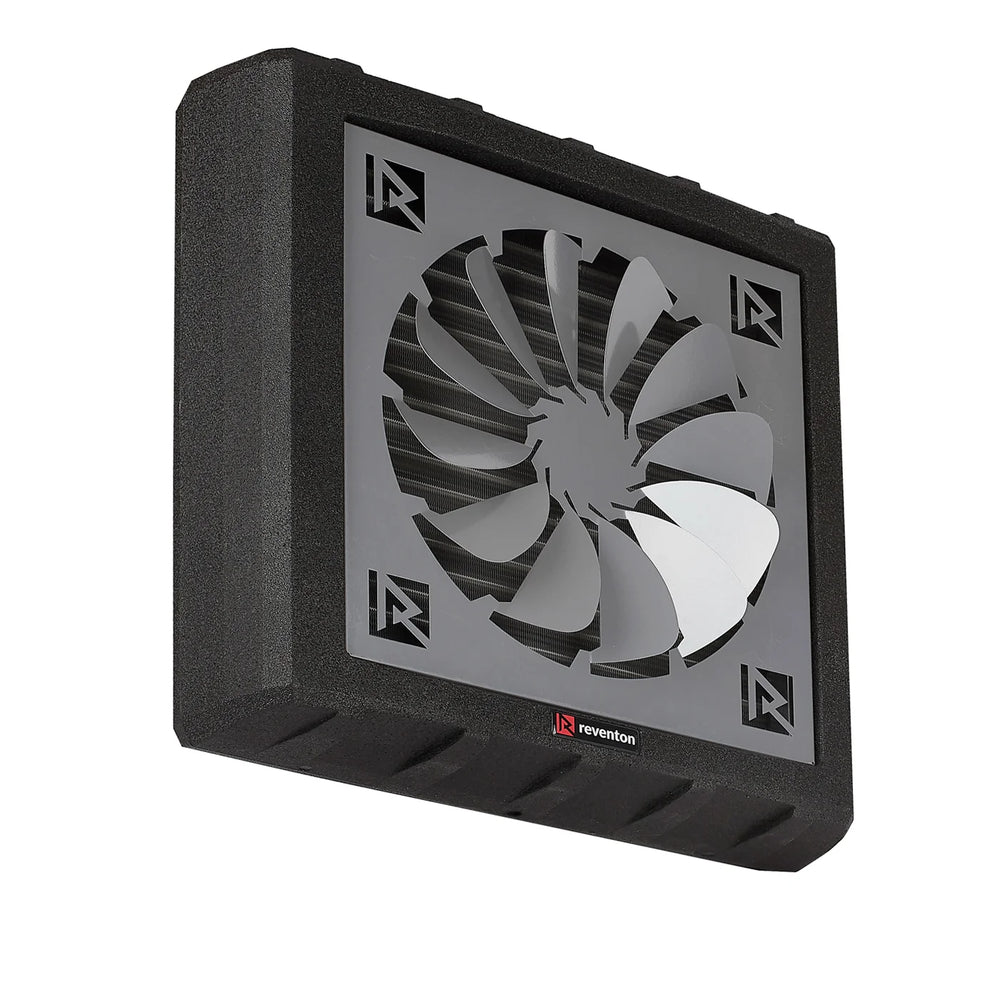

HC water heater with 360° diffuser

€483,12
pay up to 30 installments,
Model

Delivery and Shipping

At Krolit, we are committed to providing a seamless and reliable shipping experience for our customers. Once you place your order, it is generally processed within 1-3 business days, excluding weekends and holidays. As soon as your order ships, you will receive a confirmation email with your tracking number and shipment details, so you can easily track your delivery.

We offer several shipping options, including standard, express, and overnight shipping, to meet your needs. Shipping costs and estimated delivery times are clearly displayed at checkout and vary based on your location and the shipping method selected. Please note that all delivery times are approximate and may be subject to delays due to factors such as weather conditions, high order volume, or courier issues.

Currently, Krolit [offers/does not offer] international shipping. If international shipping is available, please be aware that customs duties, taxes, or other additional fees may apply, which are the responsibility of the recipient. We recommend checking with your local customs office before placing an order.

To ensure timely delivery, please ensure the shipping address provided at checkout is correct and complete. Krolit is not responsible for delays or lost packages due to incorrect or incomplete address information. If your package appears to have been delivered but you haven't received it, we recommend contacting the courier first. If the problem persists, our customer support team is available to assist you.

If you have any questions or concerns regarding shipping or delivery, please do not hesitate to contact us at [your email address] or by phone at [your phone number].

At Krolit, we value your satisfaction and are committed to ensuring your order arrives safely and on time.

Secure payment guaranteed

Description

The HC-3S series water heater with a 360° diffuser is designed for industrial facilities with central heating systems. The 360° diffuser, thanks to its design, creates a vortex of air that passes through the heater, thus improving mixing with the ambient air. The device features an EPP (expanded polypropylene) housing, which helps reduce operating noise, ensuring quiet operation. The EPP housing is ideal even in harsh environmental conditions, such as high humidity areas.

Applications
The HC-3S series air heater offers thermal comfort in spaces such as:

  • Production sheds
  • Warehouses
  • Commercial pavilions
  • Mechanical workshops
  • Garage
  • Greenhouses

Parameters

  • Power range: 1.55 – 91.5 kW
  • Weight: 13 – 24 kg
  • Shell: EPP

Additional Information

  • The device is equipped with a diffuser that creates an air vortex, improving the mixing of ambient air with the supplied air.
  • The body is made of eco-friendly and completely recyclable material.
  • The heat exchanger, depending on the model, can have 1, 2 or 3 rows.
  • The device's fan, with IP 54 protection, complies with the European directive 2009/125/EC (ErP 2015).
  • 24 month manufacturer's warranty.

Check
Our devices, combined with accessories dedicated to the HC series, form a complete control system that guarantees efficient and economical thermal comfort.

Advantages

  • Diffuser that creates a vortex for effective air mixing
  • Quiet and reliable operation
  • Eco-friendly and durable material
  • 3-speed fan
  • Ease of installation
  • Modern design

Technical specifications table

Product code Rated power [kW] Thermal capacity range [kW] Maximum air flow rate [m³/h] Maximum range [m] Number of rows [pieces] Water capacity [dm³] Maximum working fluid temperature [°C] Maximum working pressure [MPa] Connection diameter ["] Supply voltage [V] / Frequency [Hz] Motor rated current [A] Rated engine speed [rpm] Motor nominal power [W] IP protection rating [-] Net weight [kg] Noise [dB]
WHHC15-3S-2402 17.2 / 13.4 / 12.1 1.79 - 23.3 1500 / 1000 / 850 10 2 0.45 120 1.6 3/4 230/50 0.36 / 0.22 / 0.21 1400 / 1200 / 1000 80 / 48 / 45 54 10 53 / 47 / 45
WHHC20-3S-1759 21.4 / 17.3 / 13.3 1.55 - 28.4 3200 / 2150 / 1350 19 1 0.65 120 1.6 3/4 230/50 0.82 / 0.62 / 0.41 1380 / 1030 / 650 185 / 140 / 90 54 12.5 57 / 55 / 49
WHHC30-3S-1760 26.4 / 20.3 / 15.5 1.8 - 34.9 3100 / 1950 / 1250 18 1 0.8 120 1.6 3/4 230/50 0.82 / 0.62 / 0.41 1380 / 1030 / 650 185 / 140 / 90 54 12.5 57 / 55 / 49
WHHC35-3S-1761 30.3 / 22.9 / 17.3 2.14 - 40.1 2700 / 1700 / 1100 15 2 1.35 120 1.6 3/4 230/50 0.82 / 0.62 / 0.41 1380 / 1030 / 650 185 / 140 / 90 54 14 56 / 54 / 48
WHHC45-3S-1762 42.0 / 28.9 / 21.1 3.21 - 55.6 2500 / 1450 / 950 14 2 1.7 120 1.6 3/4 230/50 0.82 / 0.62 / 0.41 1380 / 1030 / 650 185 / 140 / 90 54 14 56 / 54 / 48
WHHC50-3S-2006 49.8 / 45.2 / 34.6 5.00 - 65.8 5000 / 4200 / 2600 24 2 1.95 120 1.6 3/4 230/50 2.05 / 1.65 / 1.4 1360 / 1050 / 750 455 / 350 / 280 54 20.5 66 / 60 / 54
WHHC70-3S-1764 60.6 / 40.1 / 32.7 5.0 - 80.1 3400 / 1900 / 1450 18 3 2.85 120 1.6 3/4 230/50 1.08 / 0.86 / 0.7 1380 / 1200 / 900 240 / 190 / 160 54 19.5 58 / 53 / 49
WHHC80-3S-1956 69.2 / 61.5 / 46.5 6.96 - 91.5 4200 / 3500 / 2300 21 3 2.85 120 1.6 3/4 230/50 2.05 / 1.65 / 1.4 1350 / 1200 / 750 455

In short, the HC Air Heater's 360° diffusion system ensures uniform heat distribution thanks to radial air diffusion, effective mixing of hot and cold air, and an optimized diffuser design. This makes it particularly effective in large and varied spaces, improving comfort and energy efficiency.

Frequently Asked Questions

FAQ – Reventon HC Water Heater with 360° Diffuser
It is a water-cooled air heater from the HC series equipped with a special diffuser that distributes hot air in all directions (360°), ensuring uniform heating of the room.
The diffusion system draws hot air from the coil and distributes it radially through a circular outlet. This ensures the heat spreads evenly across the entire surface of the room.
It is perfect for large spaces with high ceilings, such as warehouses, studios, laboratories and gyms, where even heat diffusion in every direction is required.
No, the diffuser can be easily added to the outlet of the HC unit heater. It's not necessary to modify the plumbing or electrical system, but it's important to check the dimensions and compatibility.
Maintenance includes:
– Periodic cleaning of the diffuser, removing dust and debris
– Checking of fixings and sealings
– General check of the fan heater's operation
– Uniform thermal coverage without cold spots
– Energy savings thanks to improved perceived comfort
– Simple installation and adaptable to various environments
