Description

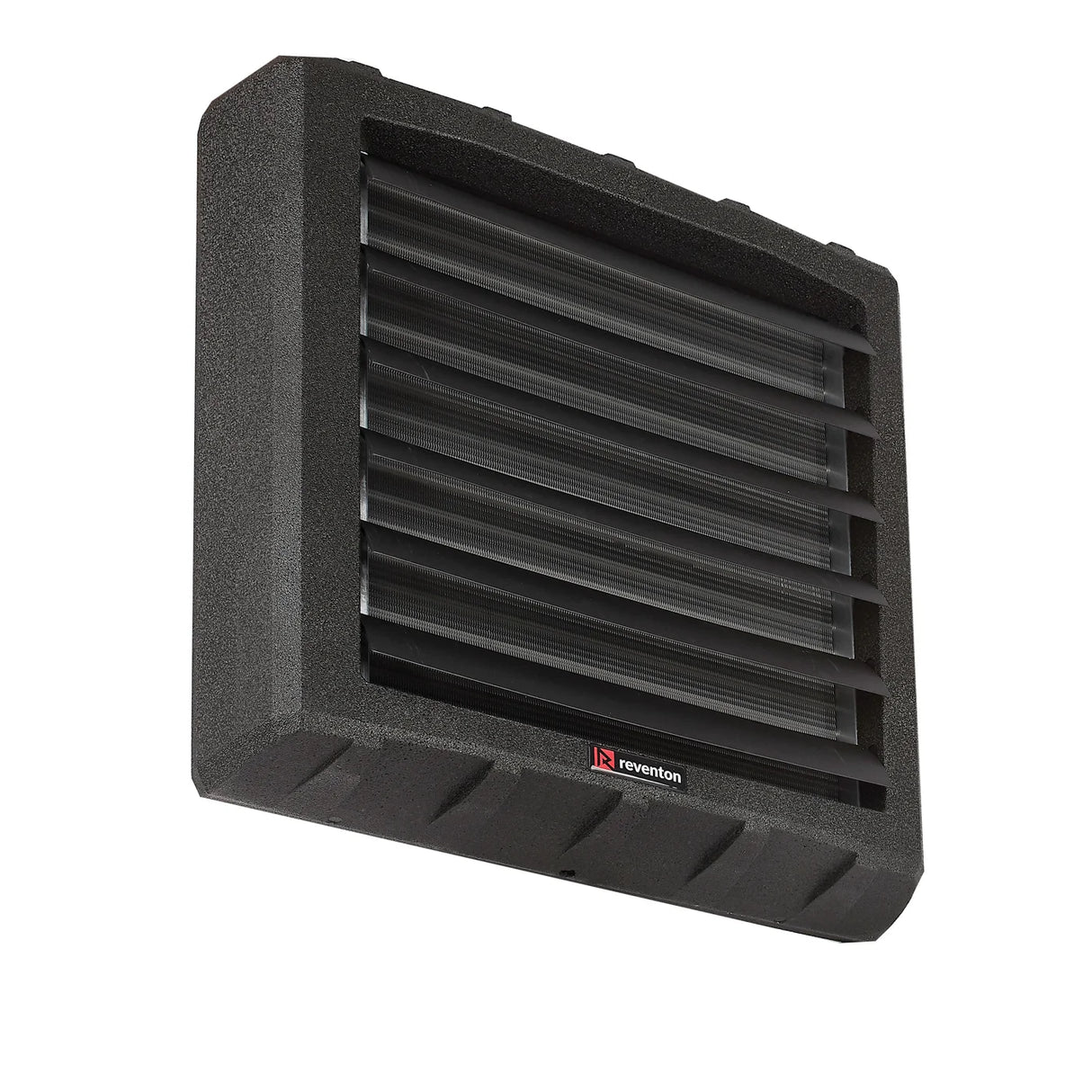

HC3P 400V Water Heater – Efficient Solution for Large Spaces

The HC3P series water-cooled fan heater is designed for installation in buildings with three-phase electrical systems, such as warehouses, industrial buildings, logistics centers, and workshops. Thanks to its advanced design and dedicated accessories, it creates a complete heat distribution system that ensures thermal comfort and economical operation.

Environments of Use

The HC3P series is ideal for heating large spaces, such as:

  • Warehouses
  • Warehouses
  • Logistics centers
  • Commercial pavilions
  • Production lines
  • Mechanical workshops

Advantages of the HC3P Air Heater

These devices are built with high-quality materials and offer numerous advantages:

  • Single-speed three-phase fan : ensures efficient operation.
  • Eco-friendly and durable EPP construction : Expanded polypropylene is 100% recyclable and offers quiet operation.
  • Reliability and durability : designed to operate continuously and with low noise levels.
  • Ease of assembly : Installation is simple thanks to the modular design.
  • Modern design : fits perfectly into industrial environments.
  • 24 month manufacturer's warranty .

Control and Automation

The HC3P unit heater, combined with dedicated accessories, provides a complete system for controlling heat distribution. This configuration optimizes energy efficiency, reducing operating costs and improving environmental comfort.


Technical Specifications

Characteristic HC3P 20 HC3P 30 HC3P 35 HC3P 45 HC3P 50 HC3P 70
Product code WHHC3P20-1514 WHHC3P30-1626 WHHC3P35-1515 WHHC3P45-1627 WHHC3P50-1516 WHHC3P70-1517
Nominal heating capacity [kW] * 21.4 26.4 30.3 42.0 44.3 60.6
Heating capacity range [kW] 2.36 - 28.4 2.84 - 34.9 3.51 - 40.1 6.02 - 55.6 6.23 - 58.5 8.78 - 80.1
Maximum air flow rate [m³/h] 3200 3100 2700 2500 4000 3400
Maximum isothermal flow radius [m] 19 18 15 14 21 18
Number of tube rows [pieces] 1 1 2 2 2 3
Water capacity [dm³] 0.65 0.8 1.35 1.7 1.95 2.85
Maximum heating fluid temperature [°C] 120 120 120 120 120 120
Maximum heating fluid pressure [MPa] 1.6 1.6 1.6 1.6 1.6 1.6
Connection diameter [inches] 3/4 3/4 3/4 3/4 3/4 3/4
Voltage/Frequency [V/Hz] 400/50 400/50 400/50 400/50 400/50 400/50
Motor rated current [A] 0.47 0.47 0.47 0.47 0.47 0.47
Rated engine speed [rpm] 1400 1400 1400 1400 1360 1360
Motor nominal power [W] 190 190 190 190 240 240
Motor IP protection class 54 54 54 54 54 54
Net weight [kg] 11.5 12 12.5 14 17.5 19.5
Noise level [dB] ** 55 55 54 54 59 58

* - for parameters 90/70°C and inlet air temperature 0°C
** - maximum capacity refers to 120/90°C, 0°C inlet air temperature, 3rd stage // minimum capacity refers to 40/30°C, 20°C inlet air temperature, 1st stage
*** - the measurement is performed at a distance of 5 meters from the device


The HC3P 400V series fan heaters are the perfect solution for large spaces, combining energy efficiency, ease of use, and an eco-friendly design. Ideal for ensuring thermal comfort in industrial and commercial spaces, these devices ensure high performance and economical energy management.

Frequently Asked Questions

FAQ - HC3P 400V Water Heater
The HC3P 400V fan heater is a space heating device that uses hot water as the heat transfer fluid. It is designed for three-phase 400V power, ensuring even heat distribution in industrial, commercial, or agricultural spaces.
Hot water from a boiler or other heat source circulates inside the unit heater's heat exchange coil. A fan forces air through the coil, heating it and distributing it throughout the room.
Yes, it's recommended to use it with a room thermostat or control unit to adjust the desired temperature and optimize energy consumption. Some models may also include fan speed control.
Yes, the HC3P is designed to operate on 400V three-phase power, ensuring greater efficiency and power for large environments.
Maintenance of the HC3P includes:
  • Periodic cleaning of the grill and battery
  • Checking hydraulic connections and supports
  • Checking the fan and motor operation
An annual check-up is recommended to ensure optimum performance.
It can be installed on the wall or ceiling in:
  • Industrial warehouses
  • Warehouses
  • Gyms
  • Workshops or greenhouses
It is important to provide a condensate drain and adequate plumbing.
