Reventon  |  SKU: WHHC15-EC-2424

HC – EC water air heater

€428,78
pay up to 30 installments,
Model

Delivery and Shipping

At Krolit, we are committed to providing a seamless and reliable shipping experience for our customers. Once you place your order, it is generally processed within 1-3 business days, excluding weekends and holidays. As soon as your order ships, you will receive a confirmation email with your tracking number and shipment details, so you can easily track your delivery.

We offer several shipping options, including standard, express, and overnight shipping, to meet your needs. Shipping costs and estimated delivery times are clearly displayed at checkout and vary based on your location and the shipping method selected. Please note that all delivery times are approximate and may be subject to delays due to factors such as weather conditions, high order volume, or courier issues.

Currently, Krolit [offers/does not offer] international shipping. If international shipping is available, please be aware that customs duties, taxes, or other additional fees may apply, which are the responsibility of the recipient. We recommend checking with your local customs office before placing an order.

To ensure timely delivery, please ensure the shipping address provided at checkout is correct and complete. Krolit is not responsible for delays or lost packages due to incorrect or incomplete address information. If your package appears to have been delivered but you haven't received it, we recommend contacting the courier first. If the problem persists, our customer support team is available to assist you.

If you have any questions or concerns regarding shipping or delivery, please do not hesitate to contact us at [your email address] or by phone at [your phone number].

At Krolit, we value your satisfaction and are committed to ensuring your order arrives safely and on time.

Secure payment guaranteed

Description

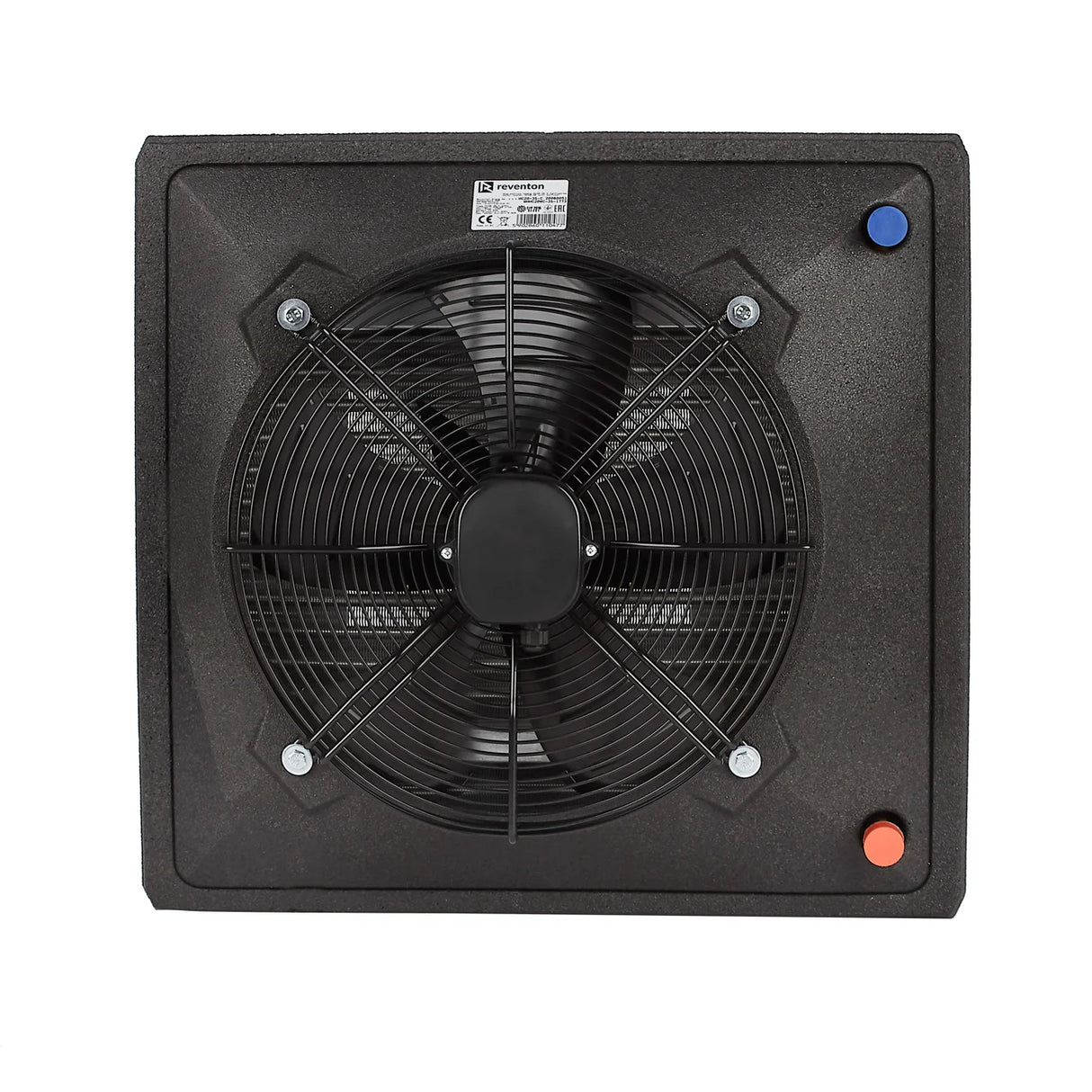

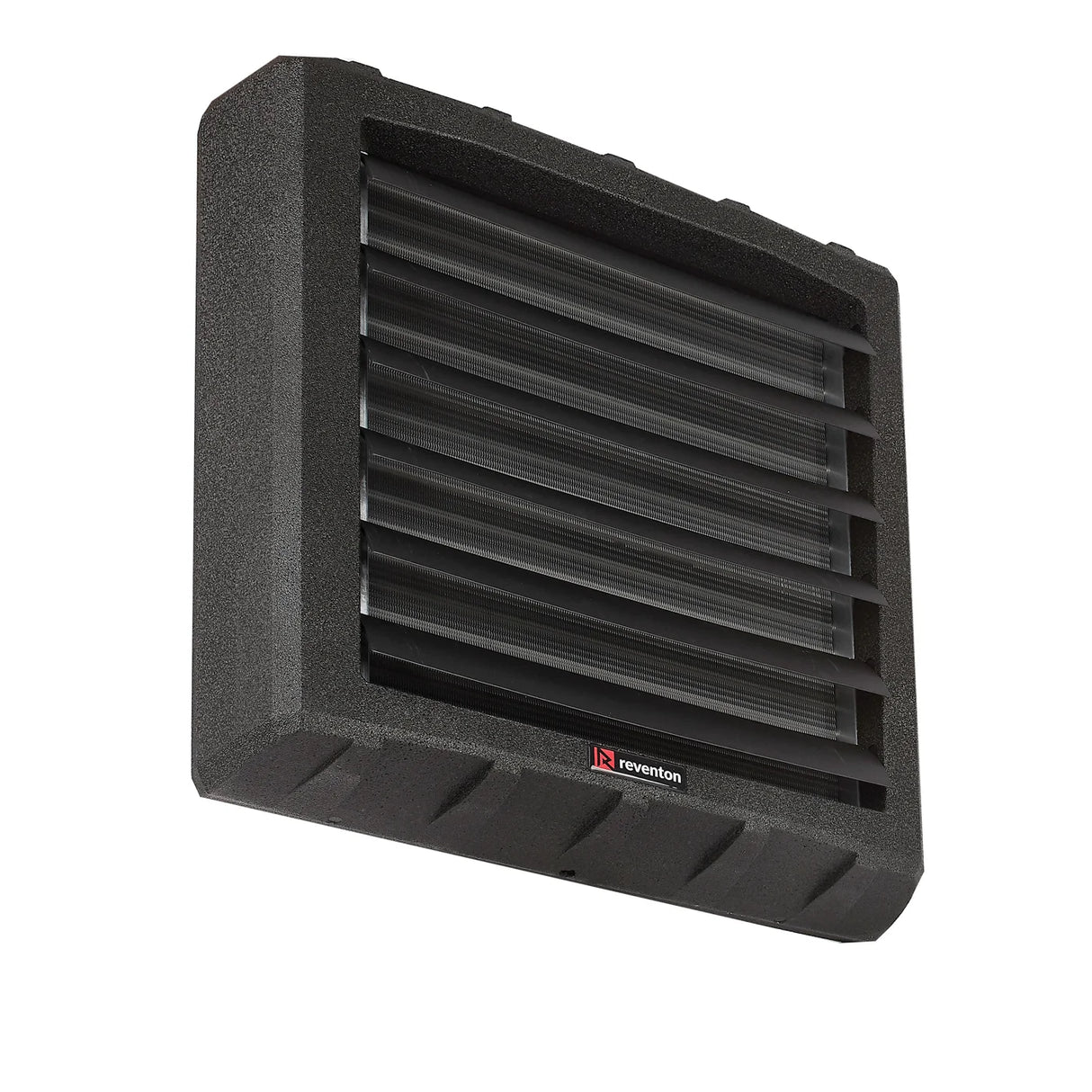

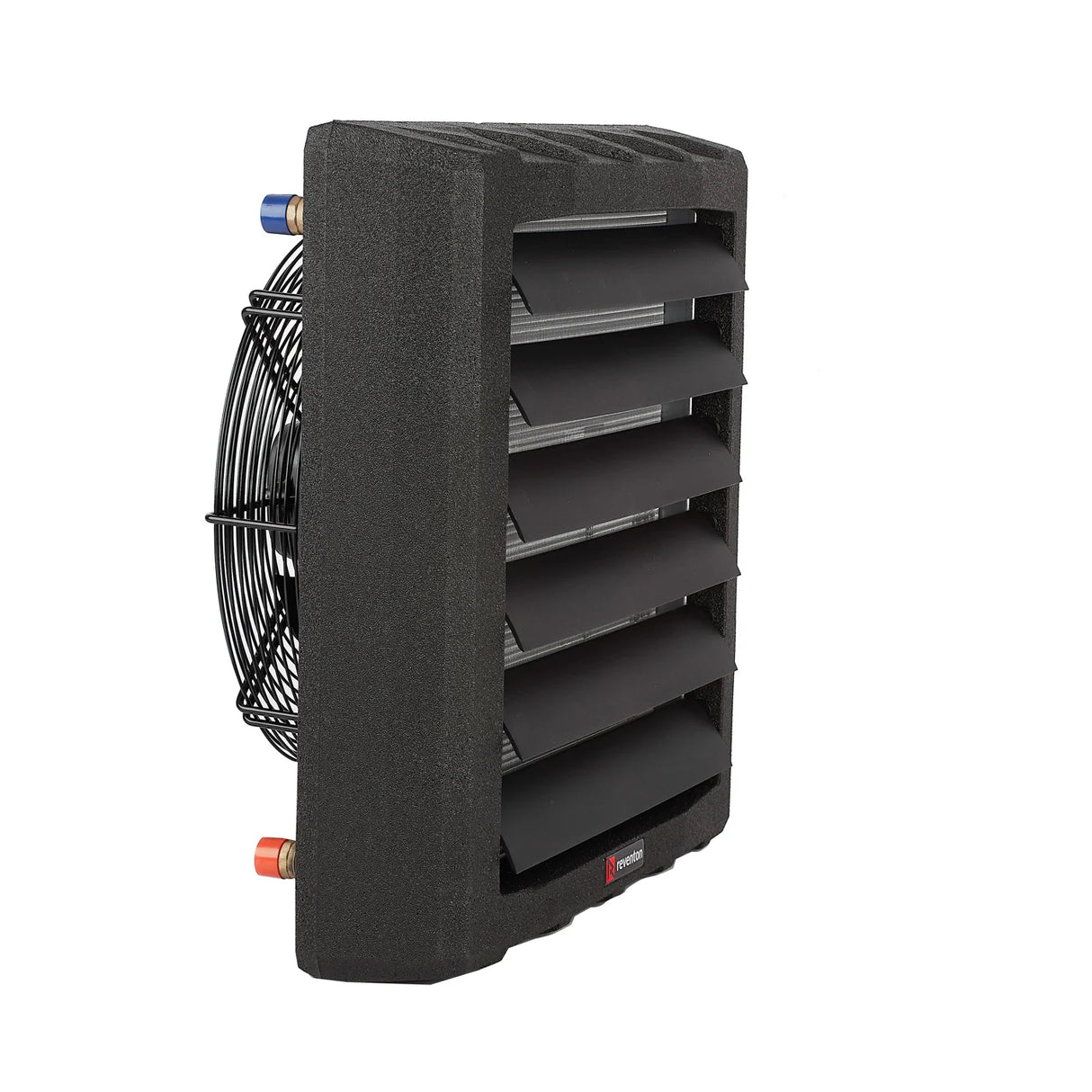

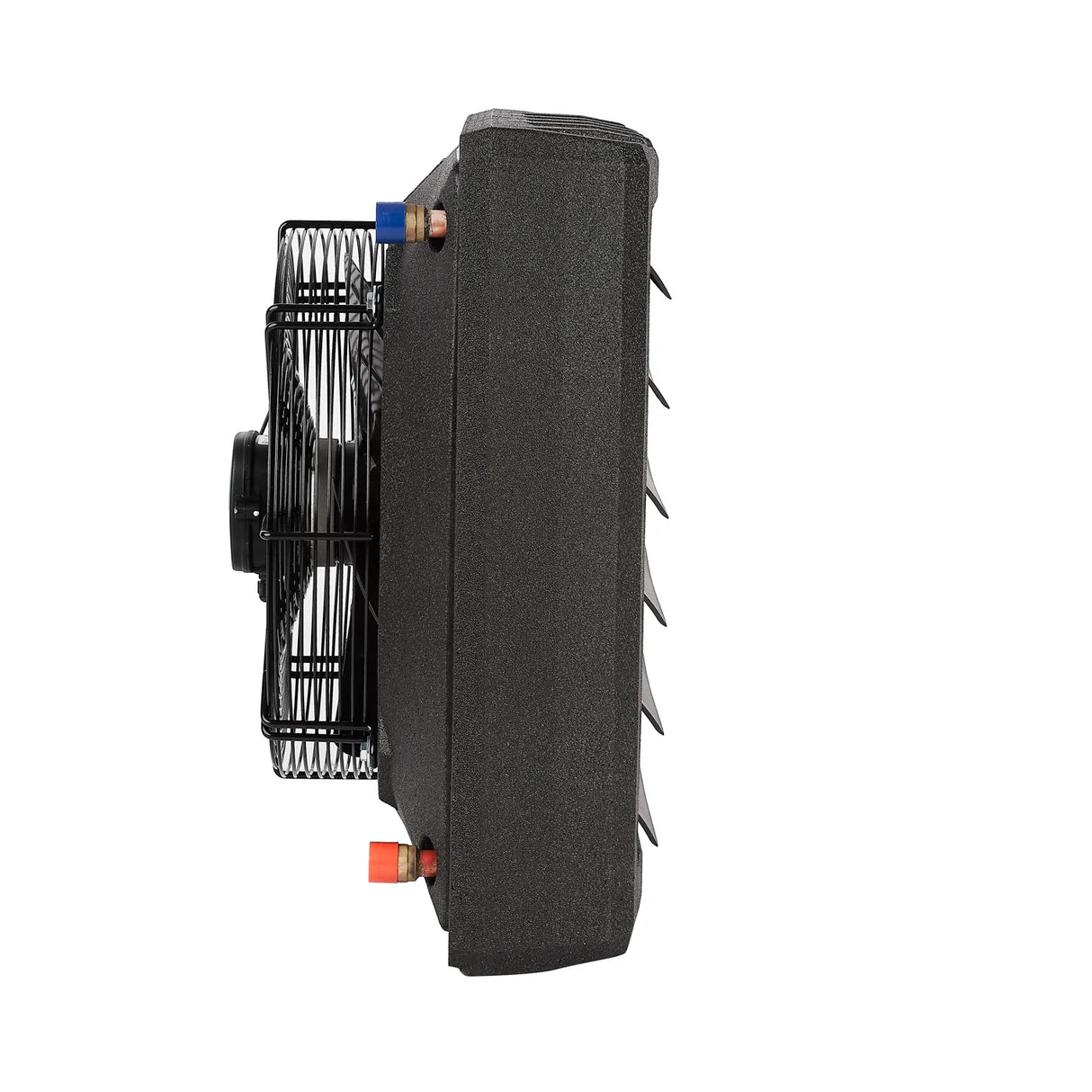

HC-EC Water Air Heater: Industrial Performance

The HC-EC series water-cooled fan heater is designed for use in industrial environments with central heating systems. It features an axial fan and a highly energy-efficient brushless EC motor, allowing for flexible speed adjustment. Furthermore, its compact design with an EPP (expanded polypropylene) housing makes it ideal for harsh working conditions, such as high humidity, ensuring quiet and reliable operation.

Environments of Use

The HC-EC series is suitable for providing thermal comfort in various industrial and commercial environments, such as:

  • Production sheds
  • Warehouses
  • Commercial pavilions
  • Mechanical workshops
  • Garage
  • Greenhouses

Advantages of the HC-EC Air Heater

These fan heaters offer numerous advantages thanks to their advanced technology and high-quality materials. Below are the main benefits:

  • High-efficiency EC motor: Reduces energy consumption and allows for precise speed regulation.
  • EPP Shell: Durable and lightweight, ensures durability and quiet operation.
  • Eco-friendly: Made from 100% recyclable materials.
  • 3-speed fan: Allows for optimal heat distribution.
  • Ease of assembly: Simple installation thanks to the modular design.
  • Modern design: Fits perfectly into industrial and commercial environments.

Control and Automation

HC-EC unit heaters, combined with dedicated accessories, form a complete control system. This system optimizes heating, improving energy efficiency and reducing operating costs. Furthermore, it complies with European Directive 2009/125/EC (ErP 2015), ensuring compliance with environmental regulations.

Technical Specifications

Characteristic HC 15-EC HC 20-EC HC 30-EC HC 35-EC HC 45-EC HC 50-EC HC 70-EC
Product code WHHC15-EC-2424 WHHC20-EC-1985 WHHC30-EC-1986 WHHC35-EC-1987 WHHC45-EC-1988 WHHC50-EC-1989 WHHC70-ECS-1990
Nominal heating capacity [kW] * 20.4 25.4 31.3 37.1 50.5 48.6 67.2
Heating capacity range [kW] 2.00 - 28.2 1.97 - 33.7 2.36 - 41.5 2.88 - 49 4.54 - 66.7 4.36 - 64.1 5.93 - 88.9
Maximum air flow rate [m³/h] 2000 4600 4300 4000 3400 4800 4000
Maximum isothermal flow radius [m] 12 21 20.5 19.5 19 23 20
Number of tube rows [pieces] 2 1 1 2 2 2 3
Water capacity [dm³] 0.45 0.65 0.8 1.35 1.7 1.95 2.85
Maximum heating fluid temperature [°C] 120 120 120 120 120 120 120
Maximum heating fluid pressure [MPa] 1.6 1.6 1.6 1.6 1.6 1.6 1.6
Connection diameter [inches] 3/4 3/4 3/4 3/4 3/4 3/4 3/4
Voltage/Frequency [V/Hz] 230/50 230/50 230/50 230/50 230/50 230/50 230/50
Motor rated current [A] 1.3 3.3 3.3 3.3 3.3 2.95 2.95
Rated engine speed [rpm] 2020 1705 1705 1705 1705 1705 1400
Motor nominal power [W] 150 500 500 500 500 430 430
Motor IP protection class 54 54 54 54 54 54 54
Net weight [kg] 11 13.5 14 14.5 16 18 20
Noise level [dB] ** 63 60 59 58 58 59 58

* - for parameters 90/70°C and inlet air temperature 0°C
** - maximum capacity refers to 120/90°C, 0°C inlet air temperature, 100% air flow // minimum capacity refers to 40/30°C, 20°C inlet air temperature, 50% air flow
*** - the measurement is carried out at a distance of 5 meters from the device

Why choose the Reventon HC – EC water-cooled fan heater?

  1. High Energy Efficiency:
    The HC – EC fan heater uses brushless EC (Electronically Commutated) motors that guarantee higher energy efficiency than traditional DC motors. This translates into significant energy savings and lower operating costs.

  2. Advanced Technology:
    Thanks to the use of latest-generation components, these unit heaters offer high-quality performance, with uniform and rapid heating and cooling capacity, ensuring comfort in every season.

  3. Reliability and Durability:
    Reventon is a brand recognized for the quality and reliability of its products. Sturdy construction and high-quality materials ensure long life and low maintenance costs.

  4. Installation Versatility:
    The HC – EC water fan heater can be easily integrated into various heating and cooling systems, adapting to different residential, commercial or industrial environments.

  5. Respect for the Environment:
    Thanks to EC technology and energy efficiency, these unit heaters reduce CO₂ emissions and environmental impact, contributing to a more sustainable approach.

  6. Customizable Control and Comfort:
    Devices equipped with advanced control systems allow for optimised operation, improving comfort and reducing energy consumption.

  7. Reventon Support and Assistance:
    By purchasing from a reputable brand, you enjoy qualified assistance service, availability of spare parts and qualified technical support.

In summary:
Choosing the Reventon HC – EC water-cooled fan heater means opting for an efficient, reliable, sustainable, and high-quality solution that guarantees optimal comfort and long-term cost savings.

Frequently Asked Questions

FAQ - Reventon Water Heater HC – EC
This is a water-powered battery-powered fan heater with a variable speed fan (EC – Electronically Commutated), optimised for heating large rooms with high performance and lower energy consumption.
The EC fan integrates an electronically controlled brushless motor, which precisely adjusts the revolutions based on the thermal load, ensuring greater efficiency, silence and energy savings compared to traditional motors.
The fan heater is compatible with 400V three-phase water coil systems. It requires connection to a boiler or heating system and provision for water circulation, with provision for condensate drainage if present.
The EC version allows for continuous fan speed adjustment, offering fine control over air flow. It can be integrated with an external thermostat or BMS system for automated management.
The EC version is ideal if you need:
– High energy efficiency
– Noise reduction
– Advanced regulation based on thermal load
Suitable for facilities with variable hours and sensitive environments (offices, sports centers, warehouses).
Maintenance includes:
– Cleaning the grill and water battery
– Checking and cleaning the EC fan
– Check hydraulic seal and connections
– Check the operation of the thermostat or integrated BMS
It is ideal for wall or ceiling installations in:
– Industrial warehouses
– Gyms and sports halls
– Shops and shopping centers
– Schools, auditoriums and studios
A condensate drain point is provided if required.
