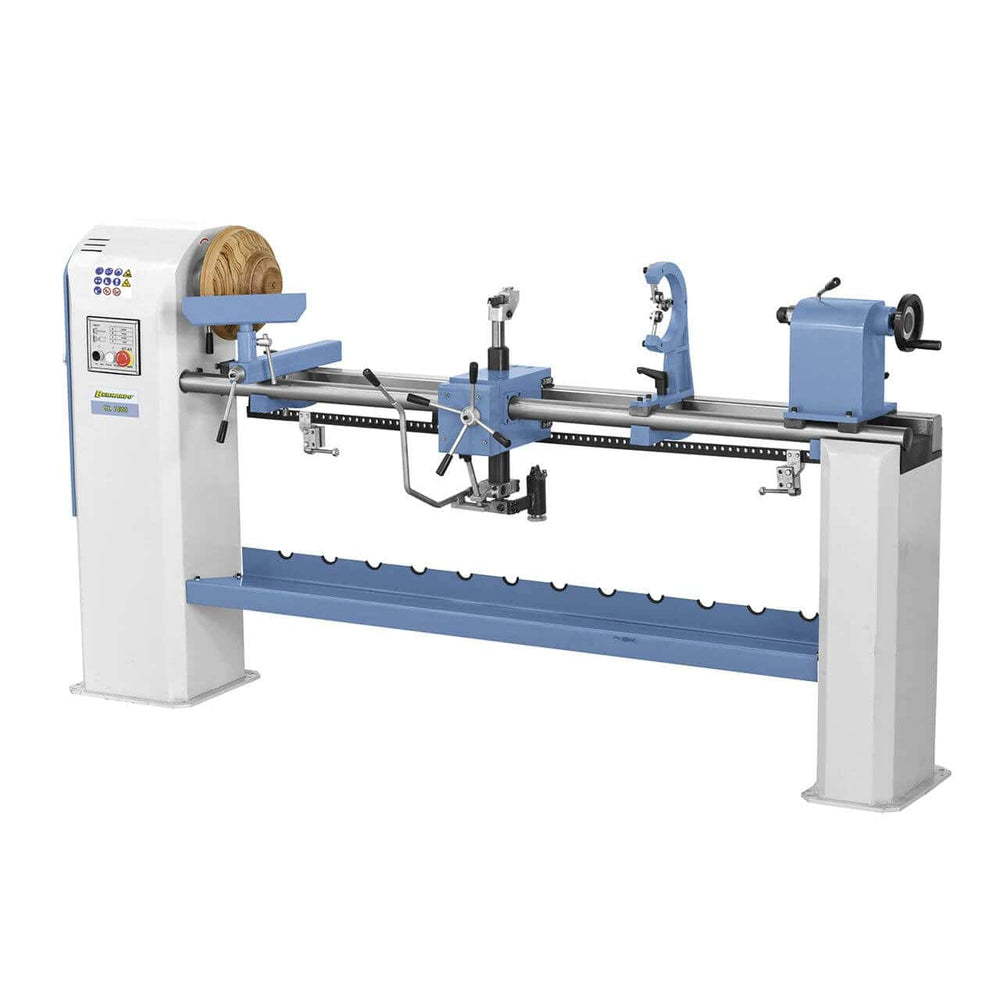

CL 1300 / 400 V wood copying lathe with copying device
The CL 1300 wood lathe is designed for experienced turners seeking precision, power, and versatility. With a 1300 mm center distance, a sturdy cast iron construction, and an included copying device, this model ensures maximum efficiency even with large workpieces.
Main features

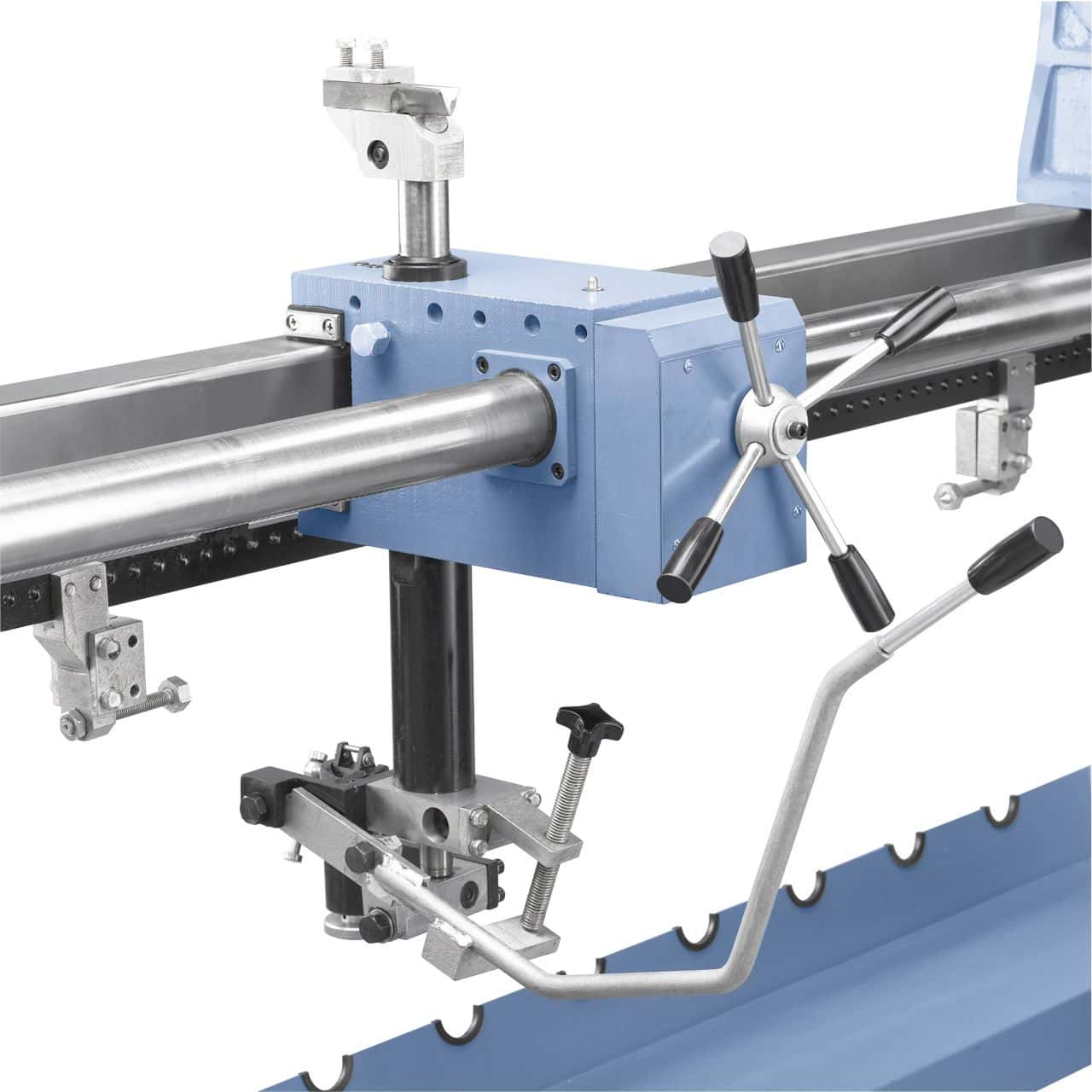

• Copying device for precise replication from original templates or pieces
• High precision spindle with high concentricity
• Grey cast iron structure for stable and vibration-free machining
• 4 selectable speeds via high quality belt drive
• Powerful motor suitable for complex and continuous operations
• Tailstock with through hole for working on long pieces
• Front switches and controls for ergonomic use
• Wide range of accessories included, excellent quality/price ratio
Technical table
| Function | Characteristic |
|---|---|
| Distance between tips | 1300 mm |
| Turning diameter on bed | 430 mm |
| Turning diameter on support | 160 mm |
| Turning diameter with copying* | 160 mm |
| Max. copying length | 1300 mm |
| Max. copying depth | 45 mm |
| Spindle speed | 500 / 1000 / 1950 / 2800 rpm |
| Spindle thread | M 33 x 3.5 mm |
| Tailstock cone | MT 2 |
| Tailstock compass stroke | 100 mm |
| S1 engine power 100% | 1.1 kW (1.5 HP) |
| S6 engine power 40% | 1.5 kW (2.0 HP) |
| Voltage | 400 V |
| Machine dimensions (L x W x H) | 2100 x 700 x 1170 mm |
| Weight | 218 kg |
| *copying from template |
Package Contents
• Copying device

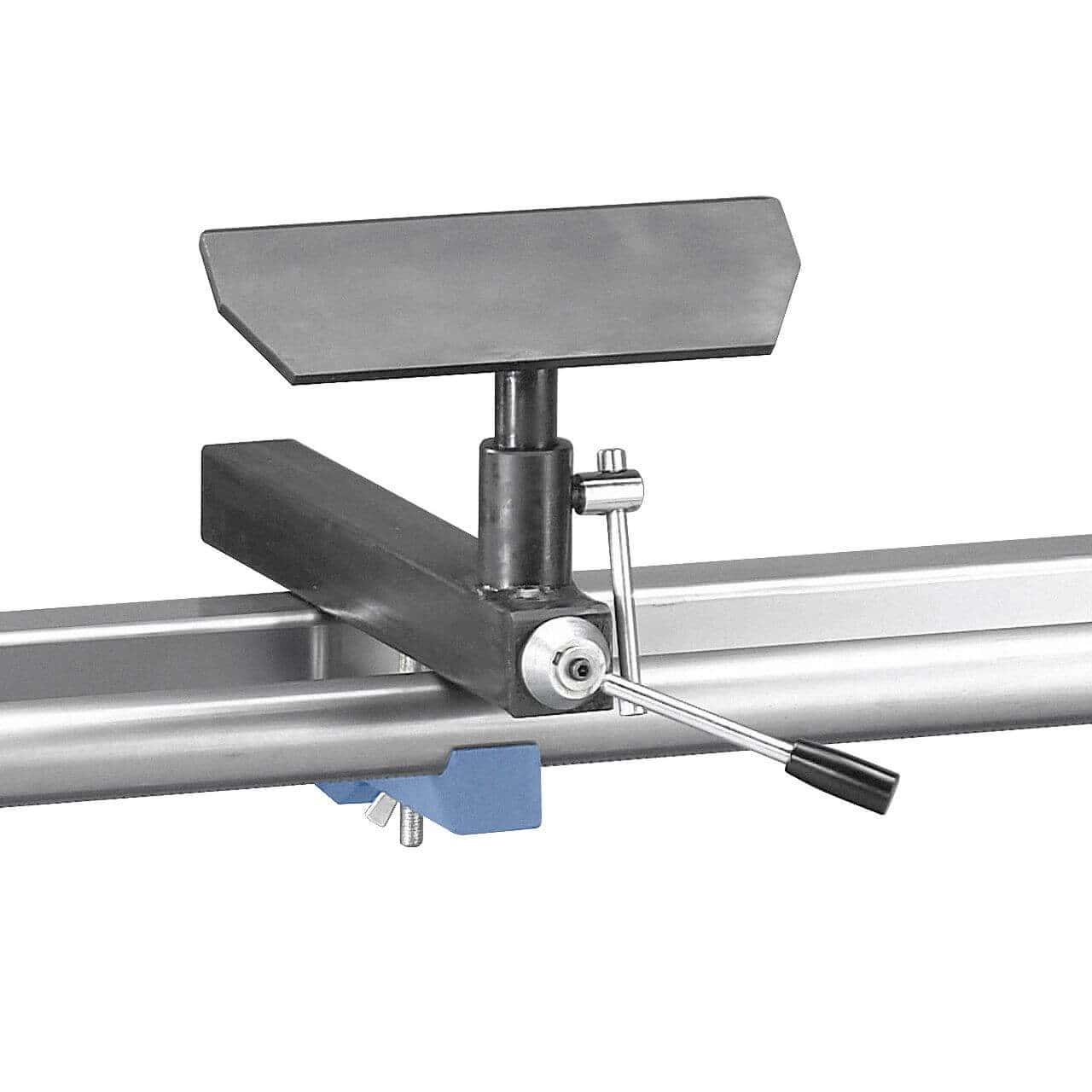

• 290mm tool rest

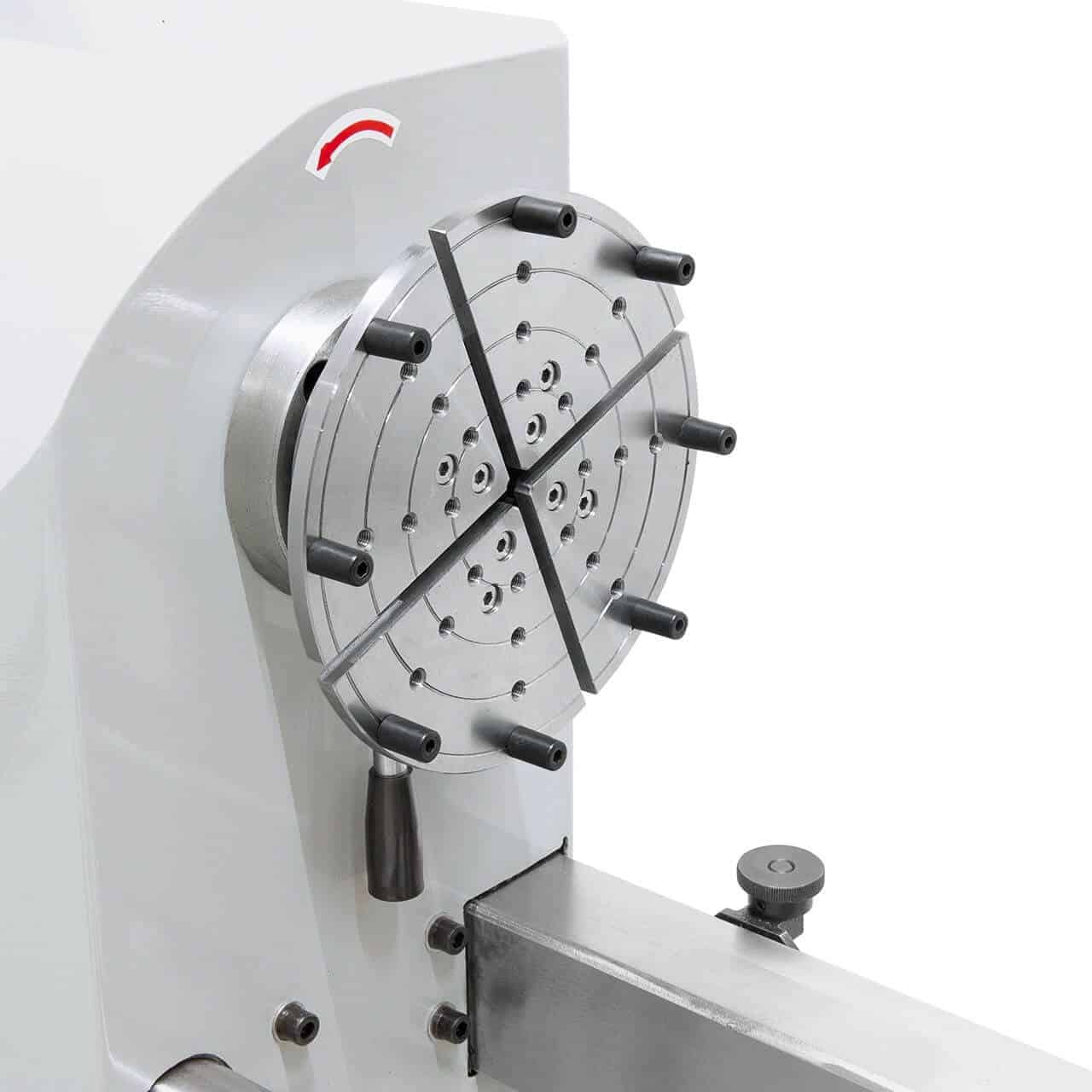

• 200mm front plate
• MT 2 rotating tailstock
• Driving tip Ø 40 mm

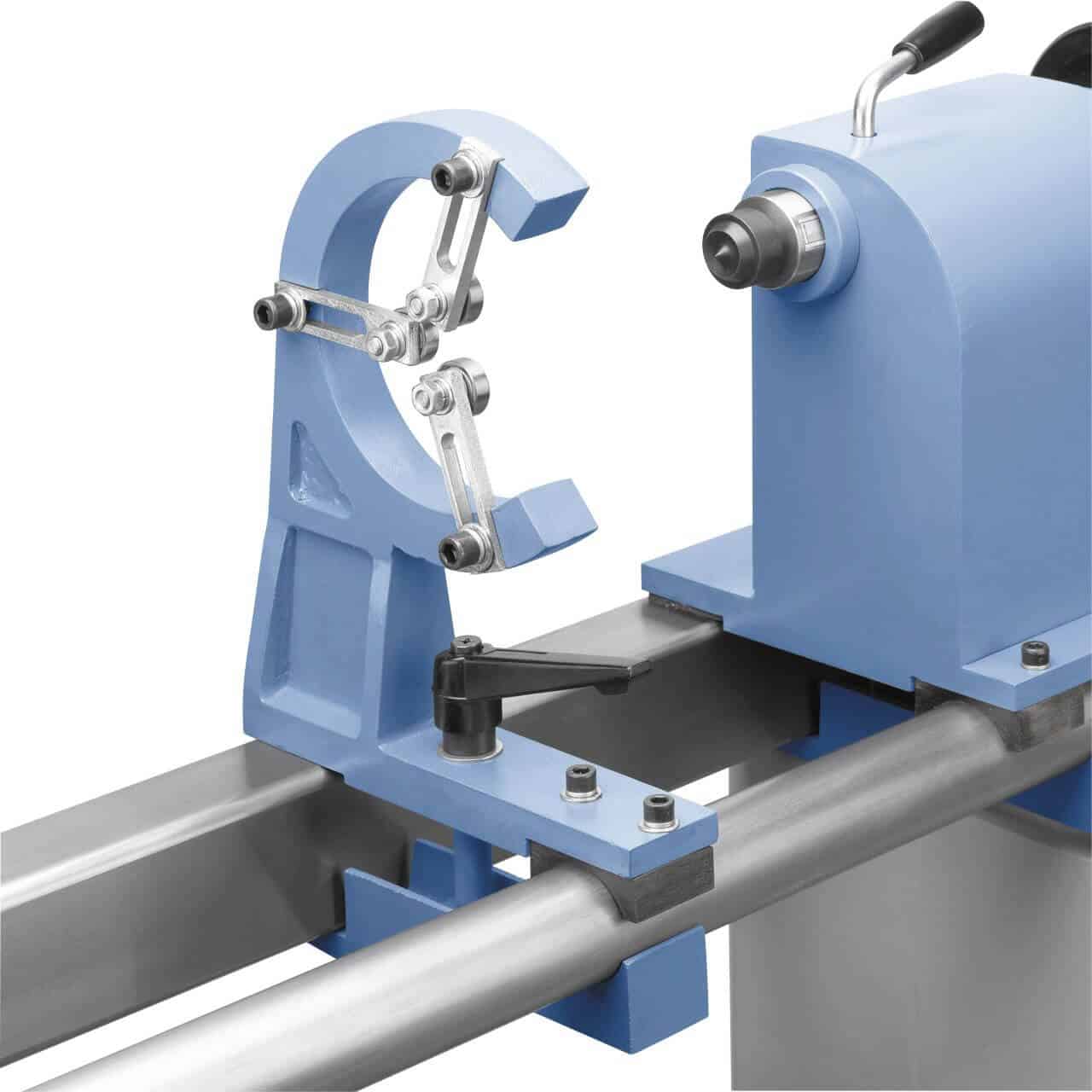

• Fixed tailstock (steady rest)
• Drill chuck 3–16 mm / B16
• Spindle shank MT 2 – B16
• HSS V-knife
