Description

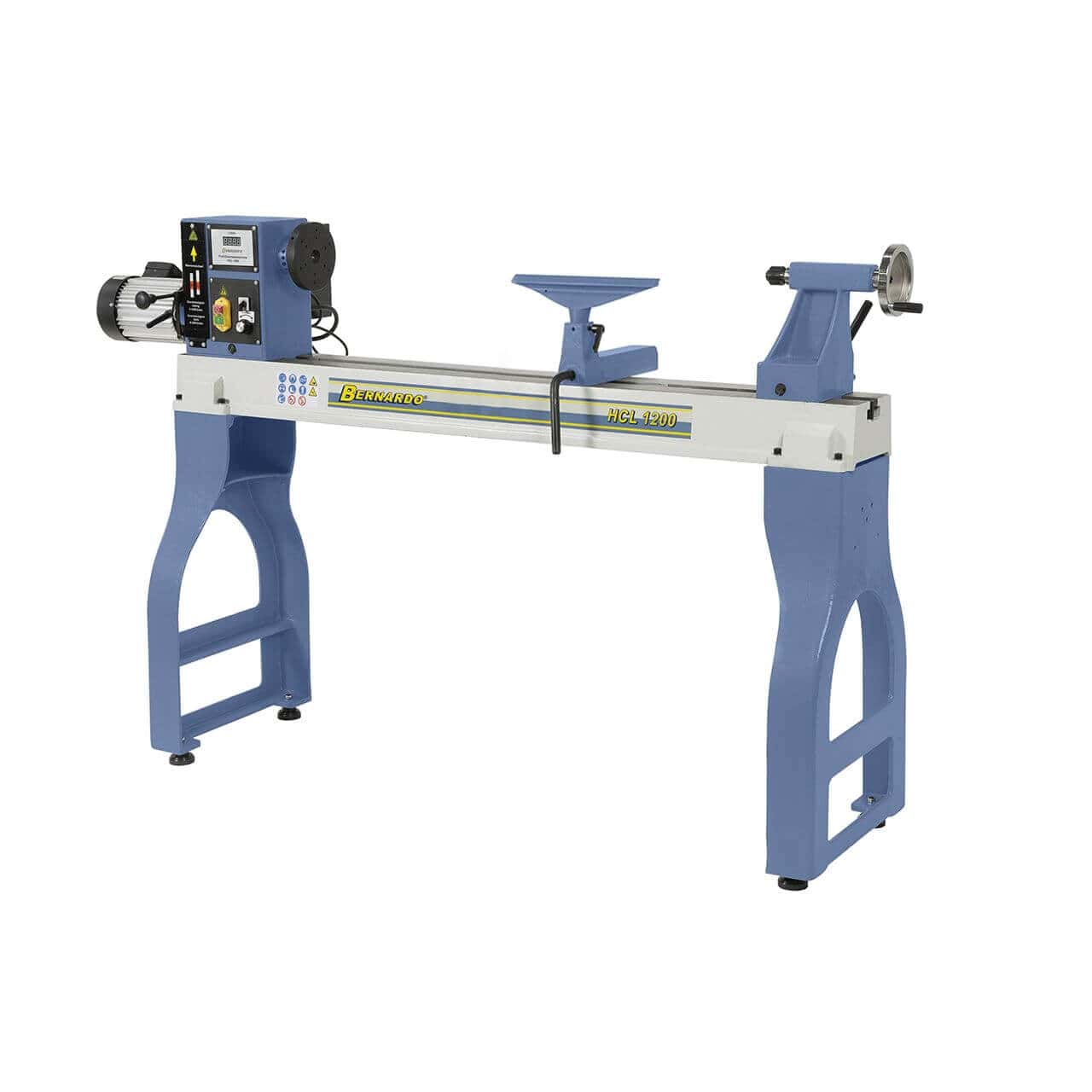

Professional wood lathe HCL 1200 / 230 V
The HCL 1200 wood lathe is the ideal choice for experienced hobbyists and professionals seeking precision, power, and versatility. Featuring continuous electronic speed control and a heavy cast iron construction, this model ensures high performance even on large workpieces. The dual speed range, digital display, and high spindle concentricity ensure precise and smooth machining.
Main features
• Electronically adjustable speed via Delta frequency inverter
• Double speed range: 0–1300 and 0–3200 rpm, continuously adjustable
• Grey cast iron structure for stable and vibration-free machining
• LED display for immediate speed reading
• Easily adjustable steel tool arm
• Precision mounted spindle to ensure high concentricity
• Quick-lock lever for fast tailstock fixing
• Compatible with optional external turning accessory
Technical table
| Function | Characteristic |
|---|---|
| Distance between tips | 1200 mm |
| Turning diameter on bed | 450 mm |
| Turning diameter on support | 350 mm |
| Spindle speed (stepless) | 0 – 1300 / 0 – 3200 rpm |
| Speed regulation | Continue, on 2 ranges |
| Spindle thread | M 33 x 3.5 mm |
| Tailstock cone | MT 2 |
| Tailstock compass stroke | 110 mm |
| Engine power S1 100% | 1.5 kW (2.0 HP) |
| S6 engine power 40% | 2.2 kW (3.0 HP) |
| Voltage | 230 V |
| Machine dimensions (L x W x H) | 2100 x 550 x 1300 mm |
| Weight | 186 kg |
Package Contents
• 360mm tool rest
• 150mm front plate
• Rotating tailstock
• Driving tip
• Delta frequency inverter
• Digital speed indicator
• Tool set
