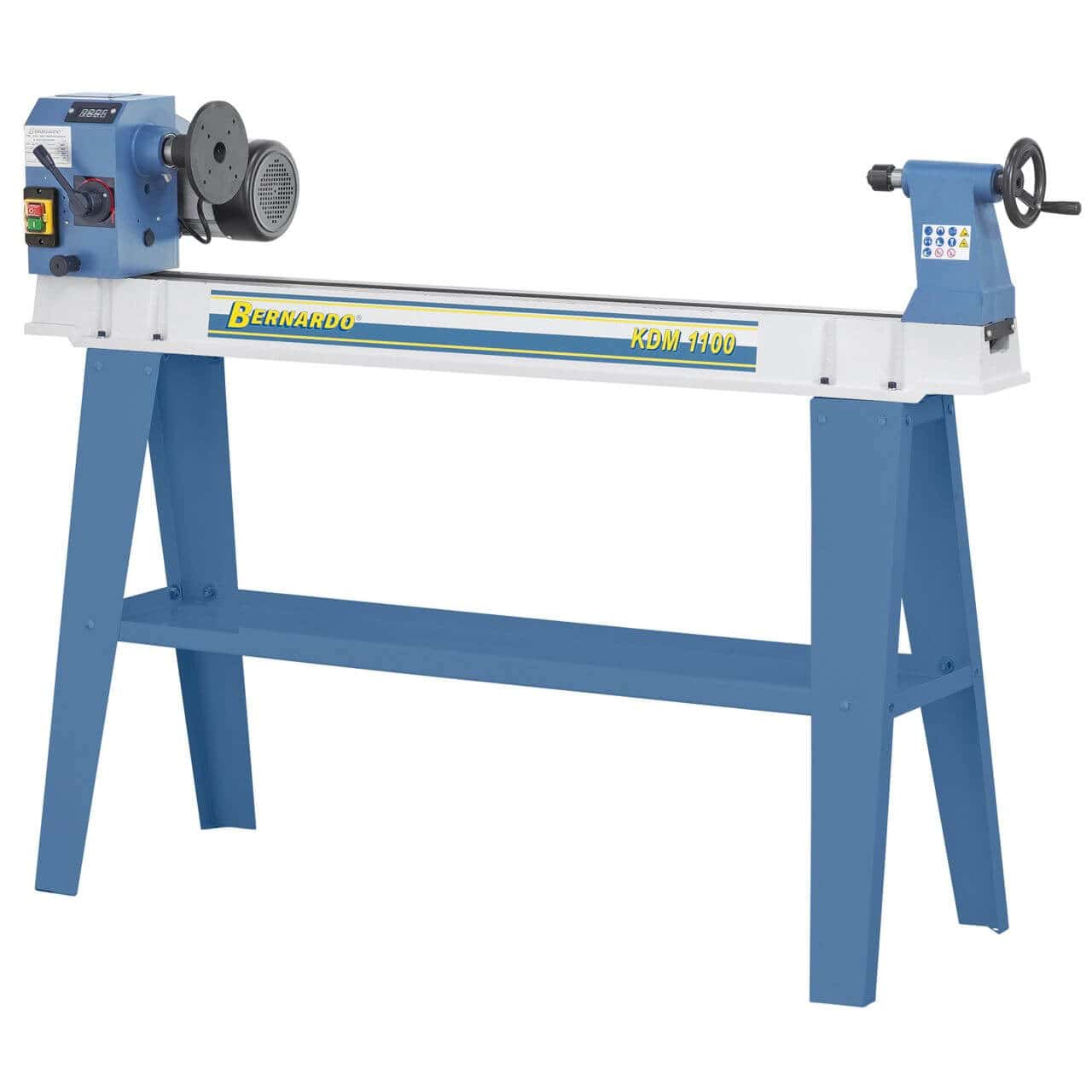

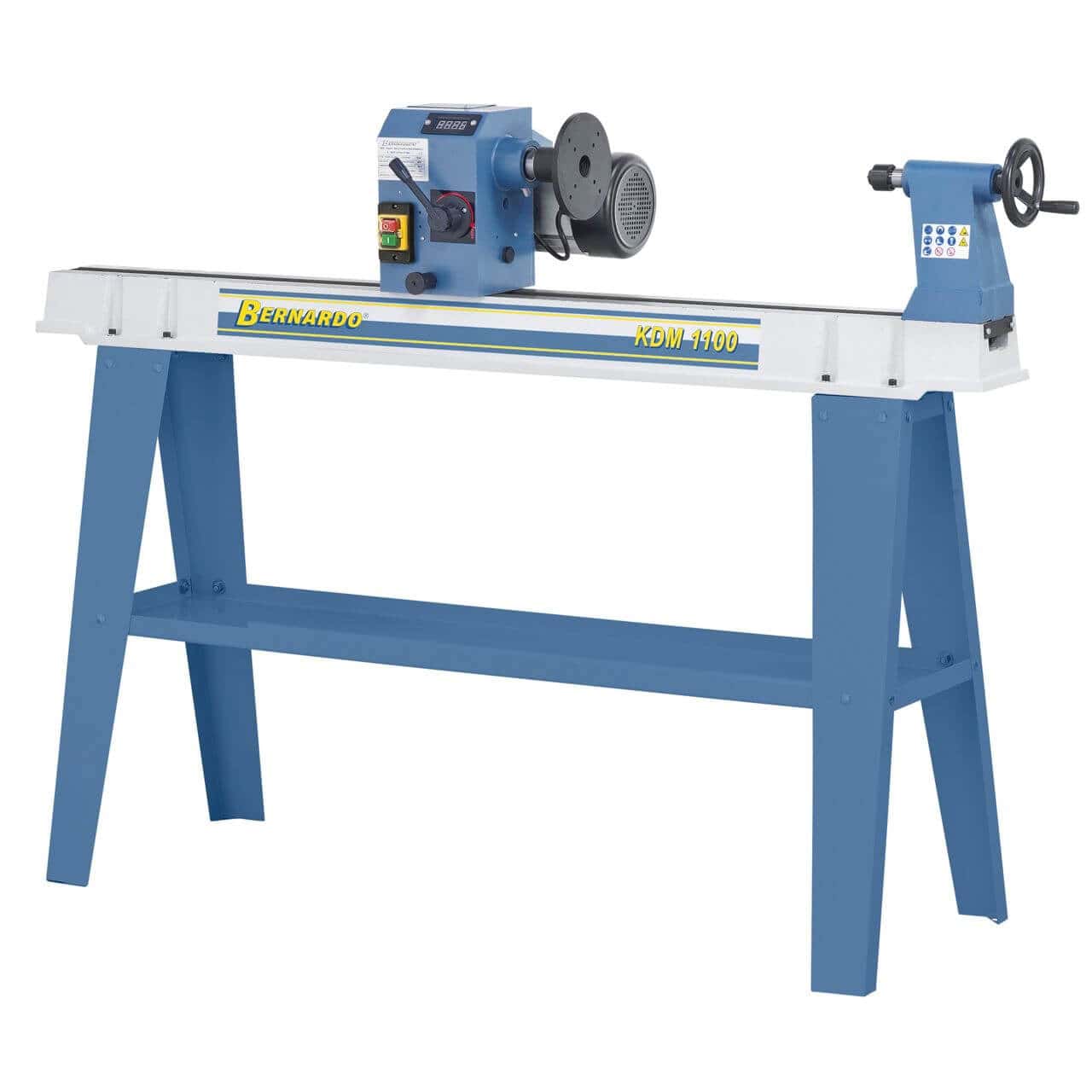

KDM 1100 / 400 V wood copying lathe with copying device
The KDM 1100 / 400 V lathe is an ideal solution for those looking to enter the world of copy turning with a solid, versatile, and well-equipped machine. Thanks to its gray cast iron construction and continuous speed control, it offers high performance and precise machining even on long workpieces.
Main features

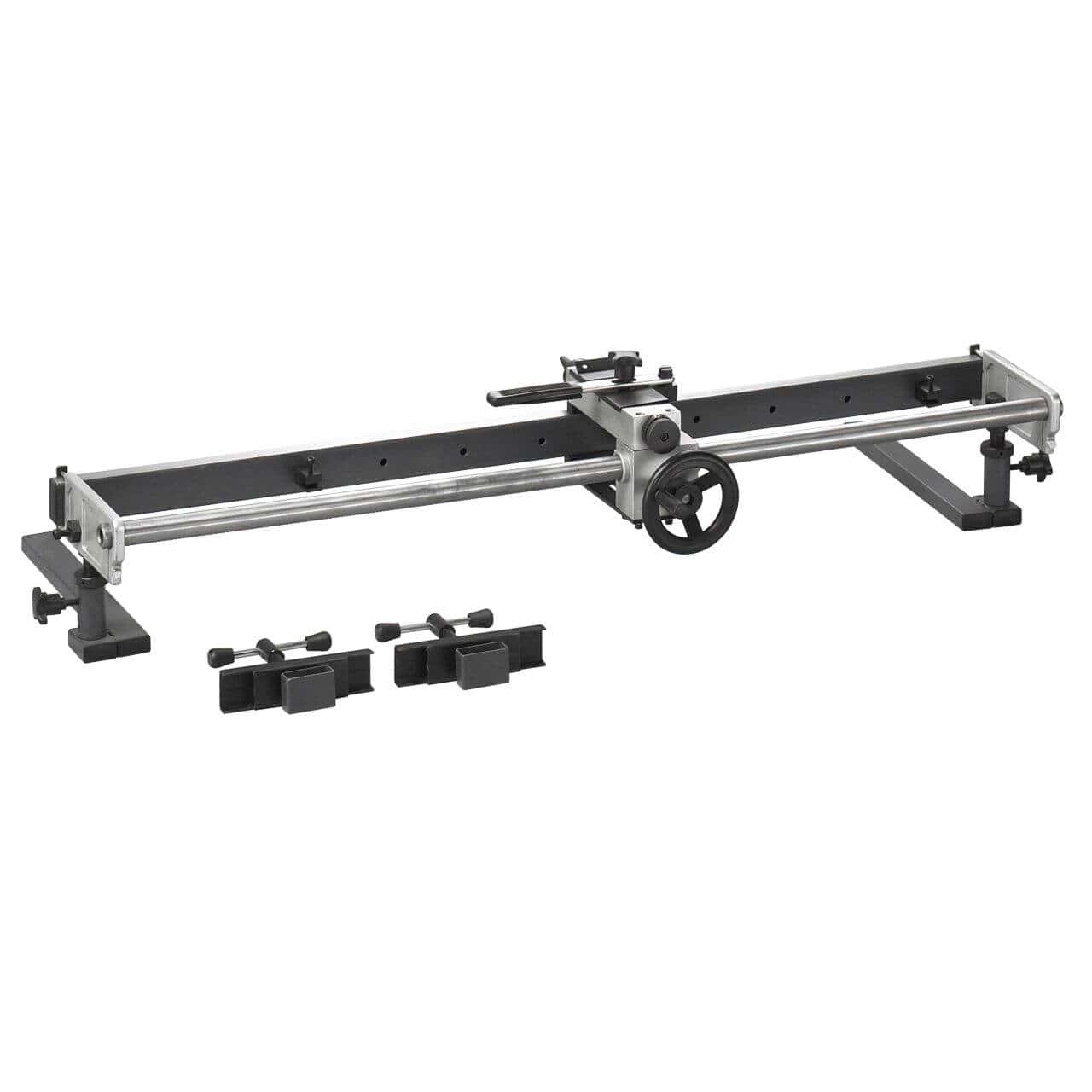

• Copying device for the faithful reproduction of original pieces or shapes

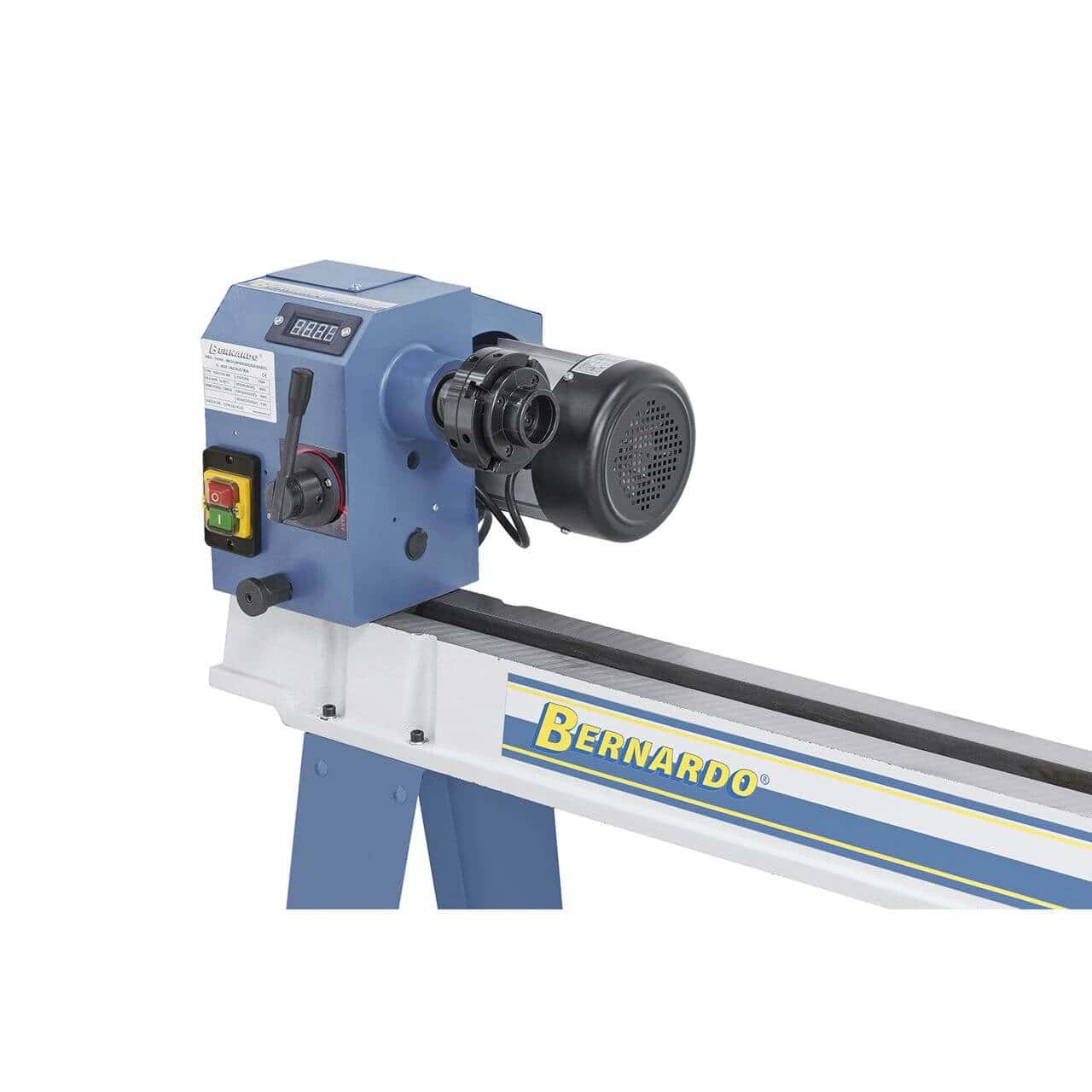

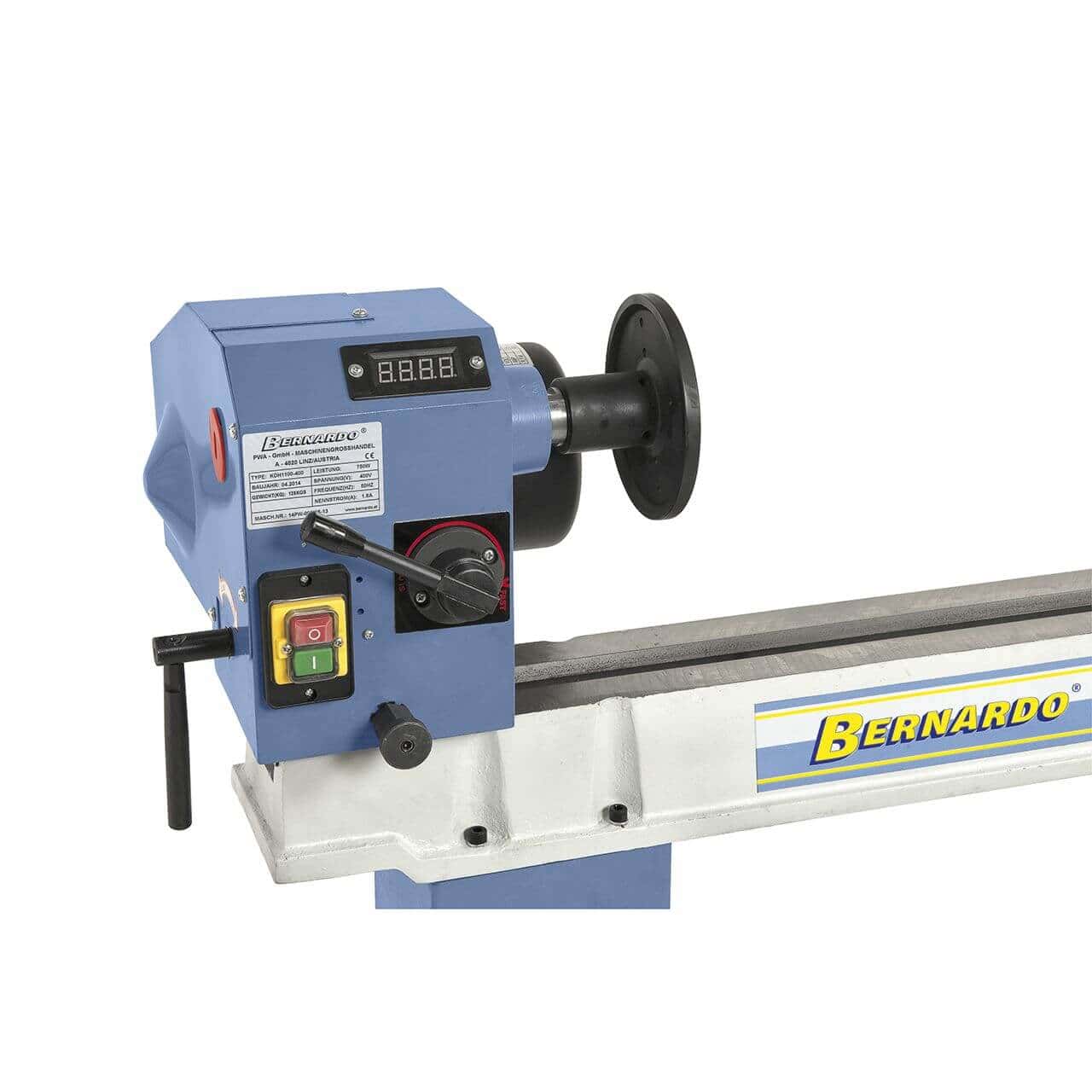

• Digital display for precise speed setting
• Continuous speed adjustment to suit the type of workpiece
• Precision mounted high concentricity spindle
• Adjustable spindle head for machining outside the bed
• Tailstock bush with through hole for working on long pieces
• Grey cast iron structure for stable and vibration-free machining

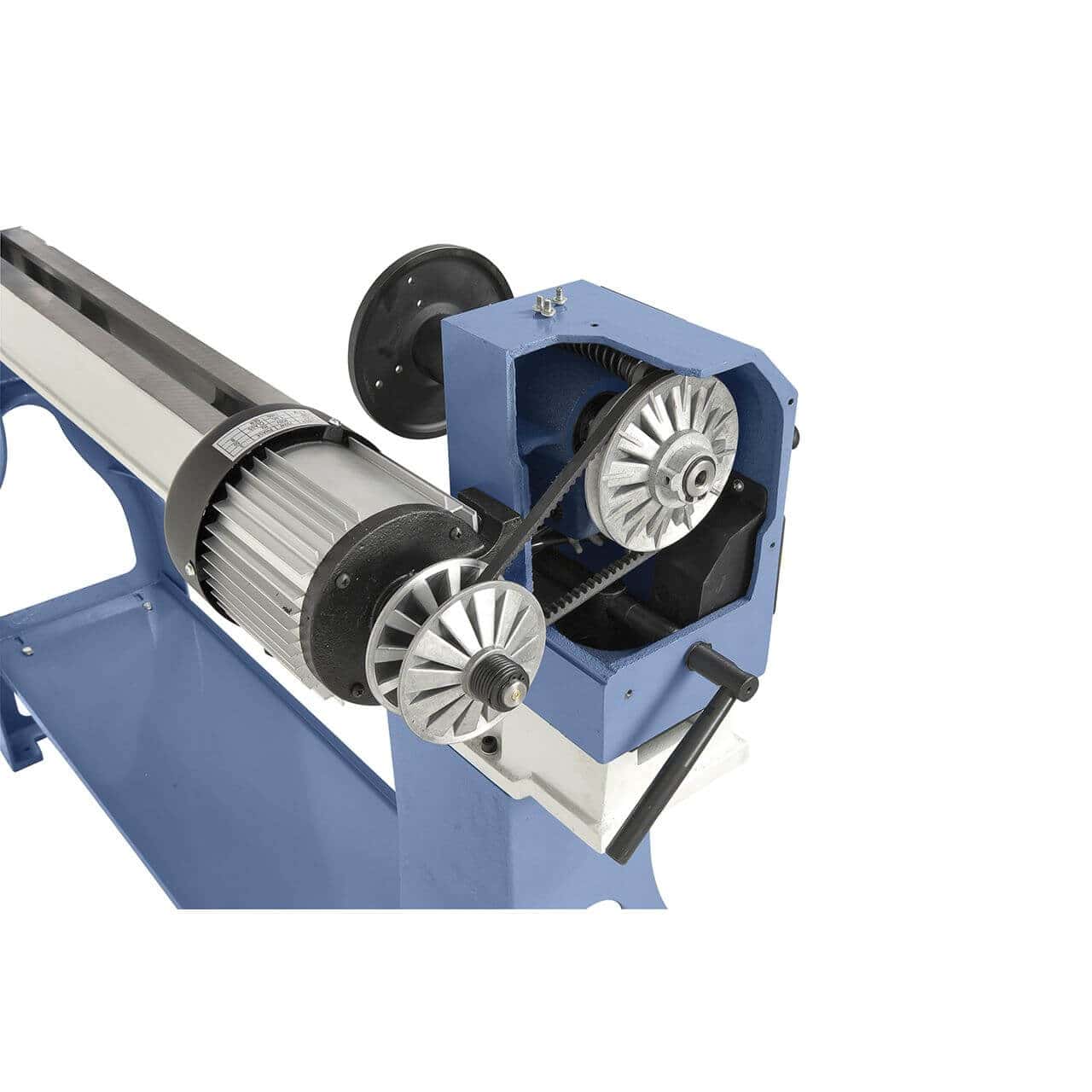

• High quality belt drive for excellent power transmission

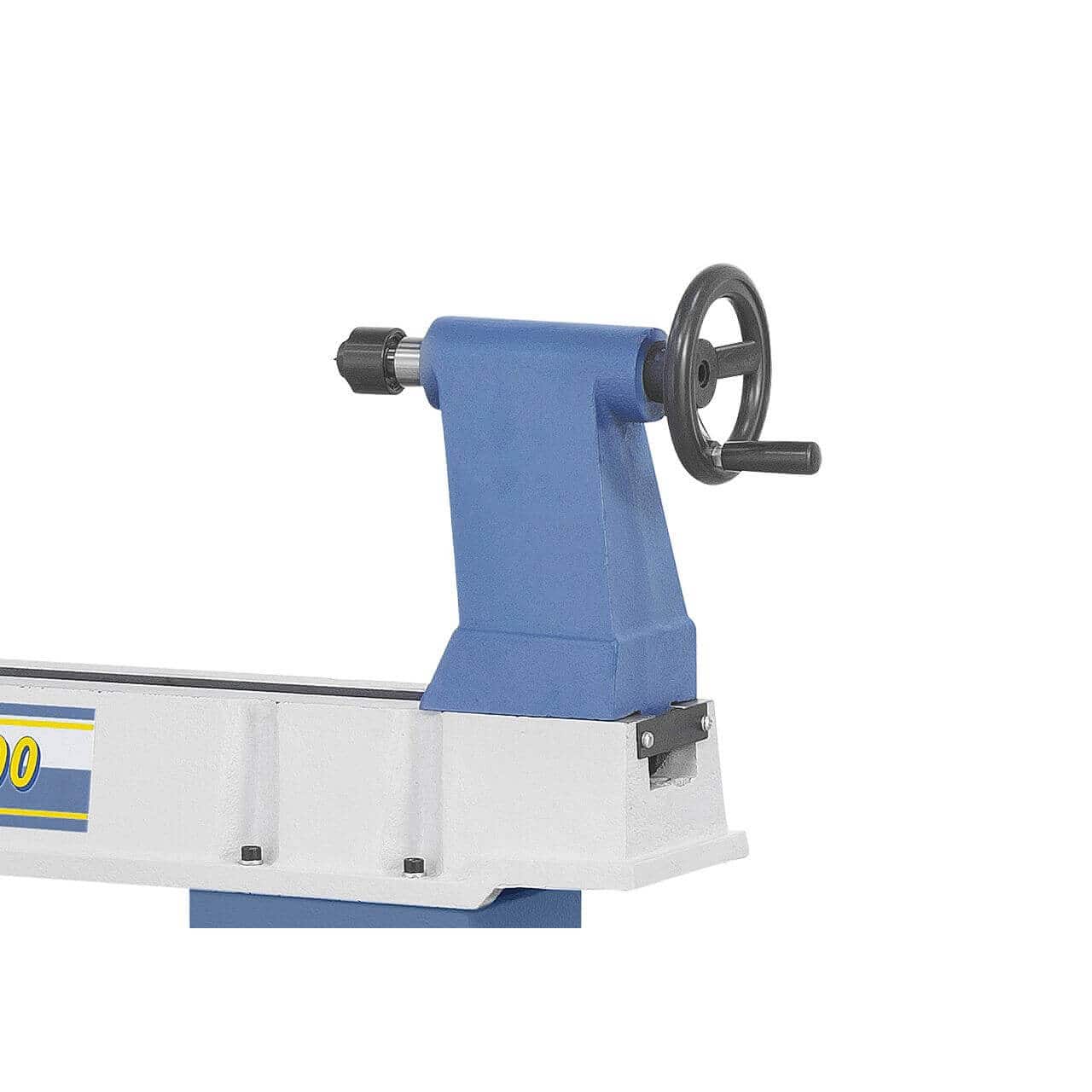

• Quick tailstock locking via lever
Technical table
| Function | Characteristic |
|---|---|
| Distance between tips | 1100 mm |
| Turning diameter on bed | 370 mm |
| Turning diameter in copying | 160 mm |
| Max. copying length | 850 mm |
| Spindle speed (continuously adjustable) | 500 – 2000 rpm |
| Spindle thread | M 33 x 3.5 mm |
| Tailstock cone | MT 2 |
| Tailstock compass stroke | 50 mm |
| S1 engine power 100% | 0.75 kW (1.0 HP) |
| S6 engine power 40% | 1.1 kW (1.5 HP) |
| Voltage | 400 V |
| Machine dimensions (L x W x H) | 1650 x 750 x 1150 mm |
| Weight | 92 kg |
Package Contents

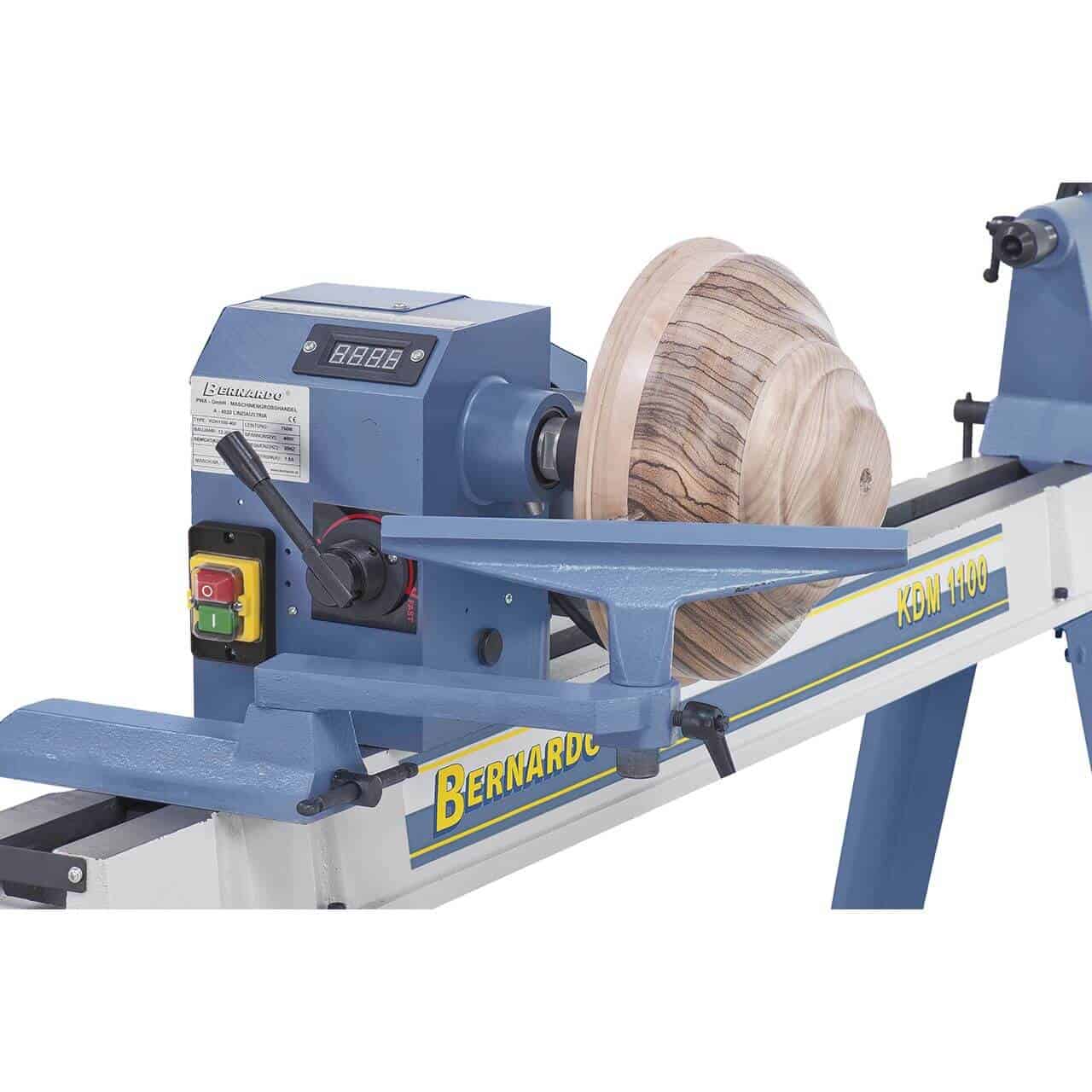

• 300mm tool rest
• 150mm front plate
• Rotating tailstock
• Driving tip
• Copying device
• Continuous speed regulation
• Digital speed display
• Machine support
• Tool set
